Lineman's Reference - XFMR Lab

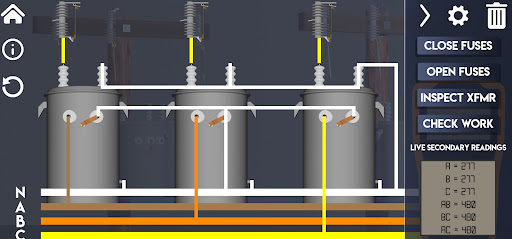

This isn't just an app with diagrams and information to read, this is a fully interactive transformer lab that can fit in your pocket. Whether you are brand new to the trade, just learning about Transformers, or a seasoned Lineman, this app can help you learn more about transformers. From transformer banks, to basic transformer troubleshooting and even basic transformer paralleling, you can learn a ton with this app. In this app there is a functioning volt meter, ohm meter, and even rotation meter. On the slide-out menu you can see your voltages as you make changes to the banks in live-time. Pop the lid to transformers and view the secondary windings and blowing fuses under certain conditions are just a few of the many amazing features! Build a custom quiz for you and your apprentices! Current Labs in this app: -Single Phase- Single Bushing Topside Dual Bushing Topside -Three Phase- Delta Delta Closed Delta Wye Closed Wye Delta Closed Wye Wye Closed Delta Delta Open Wye Delta Open -Misc- Paralleling 4th Cutout Troubleshooting Tutorial -Advanced- Straight 480 240/480 277/480 Corner Grounded 240 or 480 Wye Wye 5 Wire (120/240 & 120/208) -Quiz- Test your transformer wiring knowledge by completing a predetermined assortment of labs at random. Blowing fuses and attempting to Check Work subtract from your overall score out of 100. -Advanced Quiz- Test your overall transformer knowledge by completing a series of random quizzes where you receive basic job-site information and have to choose the correct transformer nameplate and secondary coil configuration. You will then have the option to wire up the corresponding bank.
